Hybrid topology, advantages, Reliable And Flexible.

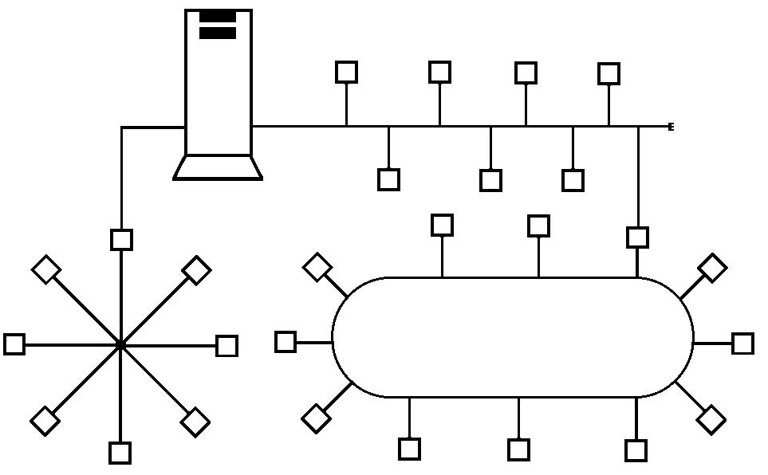

Hybrid topology:

•Two or more basic topologies are combined to form new design to meet an organization needs.

advantages:

•Reliable

•Flexible

•Effective

Reliable:

 •Fault tolerance

•Fault diagnosis

•Easy repair without other part effect

Flexible:

•Designed according to requirement

•For optimal conditions ,suit network traffic

•Easy to expand

•Concentration point have extra nodes

STAR TOPOLOGY

•All cable segments connected to a center hub with p2p.

•All transmission is done through hub

•Hub acts as repeater too.

•Was familiar in mainframe computers.

•Simplest topology to implement.

•Advantage: easy to add new nodes.

•Disadvantage : single point of failure.

Ring.

•Single circle network

•No terminated ends

•Each computer acts as repeater.

•More reliable than pure star network

•Each computer is transmitter and receiver too.

•One node stop means all stop after that node.

Ring Topology

Mesh

•All nodes are interconnected by dedicated lines to all others.

•Highly reliable ease of installation.

•Very costly and redundant.

•Used in conjunction with others to make hybrid technology.
